Roll PressCreative & Innovative Systems
Roll Press Main Spec._Standard
-
Tandem Calender_7580 Auto Turret
-
Single Calender_7580 Auto Turret
-
Single Calender_6580 Non Auto Turret
-
- Pressing Gap ControlScrew Servo Type / Hydraulic Servo Pack System
- Pressing widthMax. 680mm
- Pressing speedMax. 100m/min
- Pressing main rollHeat Source : Hot oil
- Pressing PressureMax. 4.2 Ton/cm
- Thickness Accuracy±1.5um
- OptionAuto Thickness Gauge
- Delivery8 months
Pressing Roller Core Technology
-
Pressing Thickness Quality : ±1.5um
-
Pressing Roller Bending Technology
-
Pressing Roller Temperature : ±2℃
Pressing Frame Core Technology
-
Pressing Main Frame Drawing & Machining Technology
- Merits : Minimize the strain of the frame / Analyze the line pressure, Load Factor, Strain Factor
- Line Pressure : Max. 4.2 Ton/cm
Automatic Thickness Core Technology
-
Pressing Gap Auto Control
- MPressure Thickness Measurement Tech.
- Function : Real Time Auto Thickness Measurement & Thickness Auto Correction & Thickness Data Auto Save
-
Type1. Screw Gap Auto Control
-
Type2. Hydraulic Servo Auto Gap Control : Patent No. 1020130098871)
Force Elongation Technology
-
Eelctrode force elongation Technology
- Tension Range : 50N~800N
-
Induction heating Technology
Core Technology
-
Electrode Edge Slitting Technology
- Applicable Battery: Cylindrical Battery (18650 & 21700)
- Knife position Control : automatic & manual
- Slitting Edge Scrap Treatment : Auto Cyclone System
- Effective : Prevention Electrode Cutting & Improve Press Thickness precise
-
Pressing Roller Production Technology
- Roller Size : Φ750 mm×900 mm
- Surface Illumination : 0.2S~0.4S
- Material & Hardness : special steel / Hs 92~95
- Heat treatment depth : over 20mm
- Straughtness : 1/1,000mm
-
DLC Coating Technology
- DLC Coating Thickness : 2um
- DLC Coating Hardness : 2,000Hv
-
Main Roller Cleaning Technology
- Felt Type(Oil Auto Spray)
-
- Roll Felt Type(Oil Auto Spray)
-
Coating Pattern Length Measurement System
-

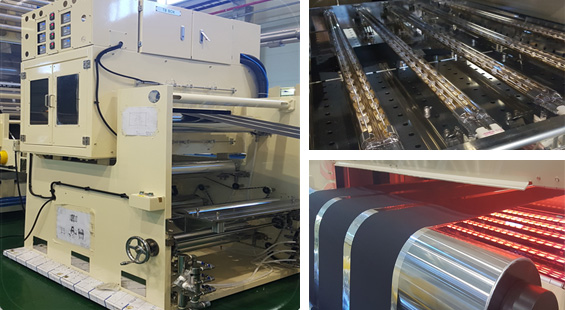

NIR Heating Technology
- Cathode Application Effec t: Electrode water removal
- Anode effect : Prevention of electrode backspring
- Emperature : Max. 130 ℃
- Application of over-temperature sensor and safety device
